Inflotec develops and manufactures products for sustainable water treatment using self-sufficient systems. These systems are independent of external energy sources by using water power, sun or wind. They are easy to set up and simple to operate. Our systems are modular and designed for low maintenance.
The Inflotec solutions are available in different standard versions. But we know: Special environments require adaptability; therefore, the systems can be adapted to individual conditions on site. For this purpose, we first make a rough analysis of the location by means of a questionnaire in order to select the suitable components.
Using polluted surface water from rivers and lakes to generate drinking water – the WAVER is the ideal solution. With the PurePowerBlock we at Inflotec go one step further: With this system not only surface water but other kinds of polluted water can be treated.
The WAVER (hydropower-based autonomous supply system) is a mobile, rapidly deployable system for drinking water treatment in crisis situations. In addition, it can also be used in continuous operation. The plant does not require any fossil fuels at all and avoids carbon dioxide emissions or direct intervention in nature. The mere presence of a water current, such as on rivers, sets the internal water wheel in motion and the water treatment starts.
Applicable
Waver product data
Dimensions
2.600 mm x 1.700 mm x 1.050 mm
Variants & Pumping capacity
Waver mit Umkehrosmose: 2.000 l/d
Waver mit Ultrafiltration: 3.000 l/d

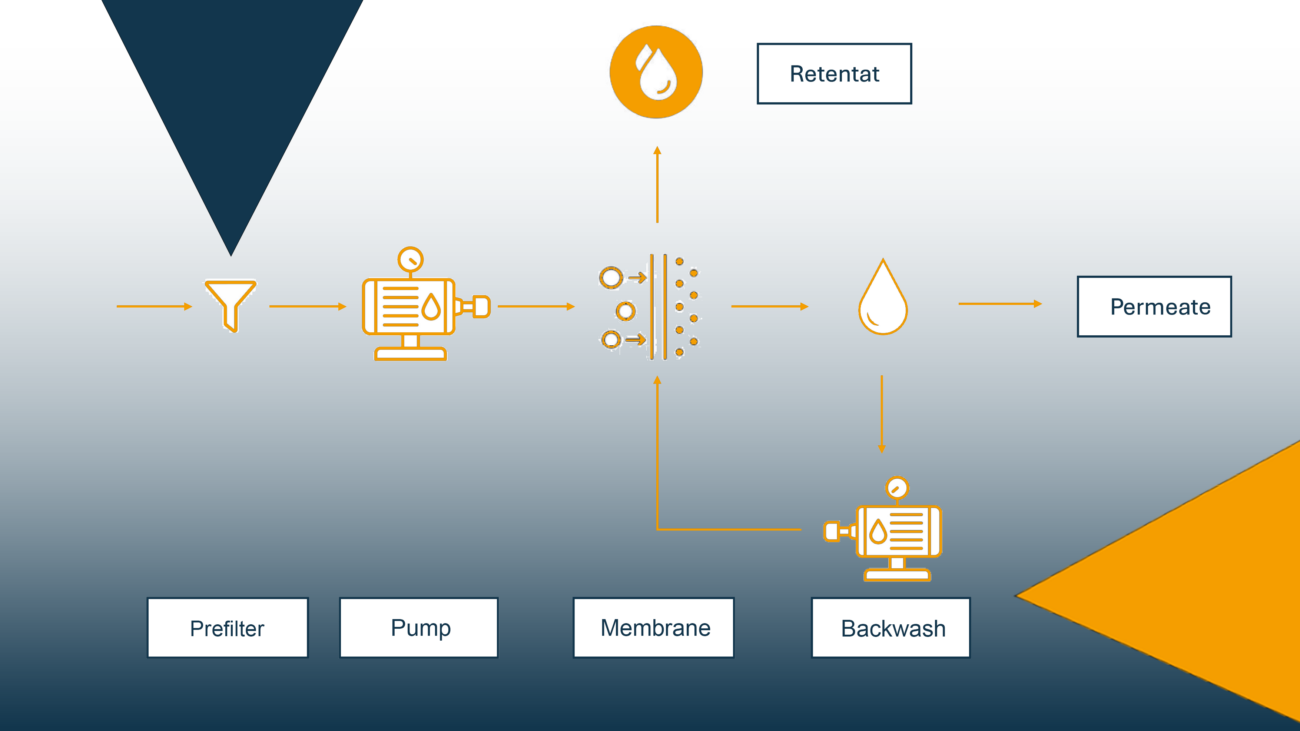

The PurePowerBlock is an ultrafiltration system with the function of self-cleaning and backwashing the filters. The decisive advantage, apart from the optimization of the output quantity, is the minimization of costs and maintenance. The principle of water treatment is as simple as it is ingenious. The modularly constructed plants are 100% autonomous by making exclusive use of the forces of nature. The system is so flexible that solar and wind power can be used in addition to the energy of the water.
Applicable
PurePowerBlock product data
Dimensions
1.200 mm x 800 mm x 1.600 mm
Variant
PurePowerBlock mit Umkehrosmose
PurePowerBlock mit Ultrafiltration
Pumping capacity
bis 4.000 l/d

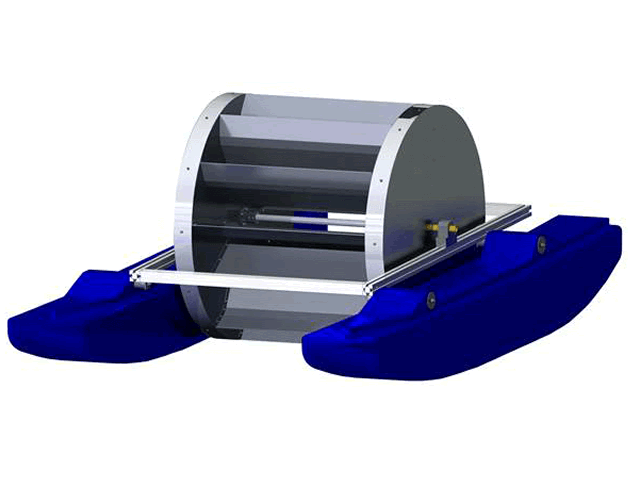

With GreenFields, river water can be pumped directly onto surrounding fields – without any external energy supply. The current-less flow pump for field irrigation was tested in a project in Kenya, which was funded by the German Academic Exchange Service (DAAD).
The filter-less system “Green Fields” is the simplified principle of drinking water treatment. It can be used to pump river water directly to surrounding fields – without any external energy supply.
Applicable
GreenFields product data
Dimensions
2.600 x 1.700 x 1.050 mm
Pumping capacity
16.000 l/d
